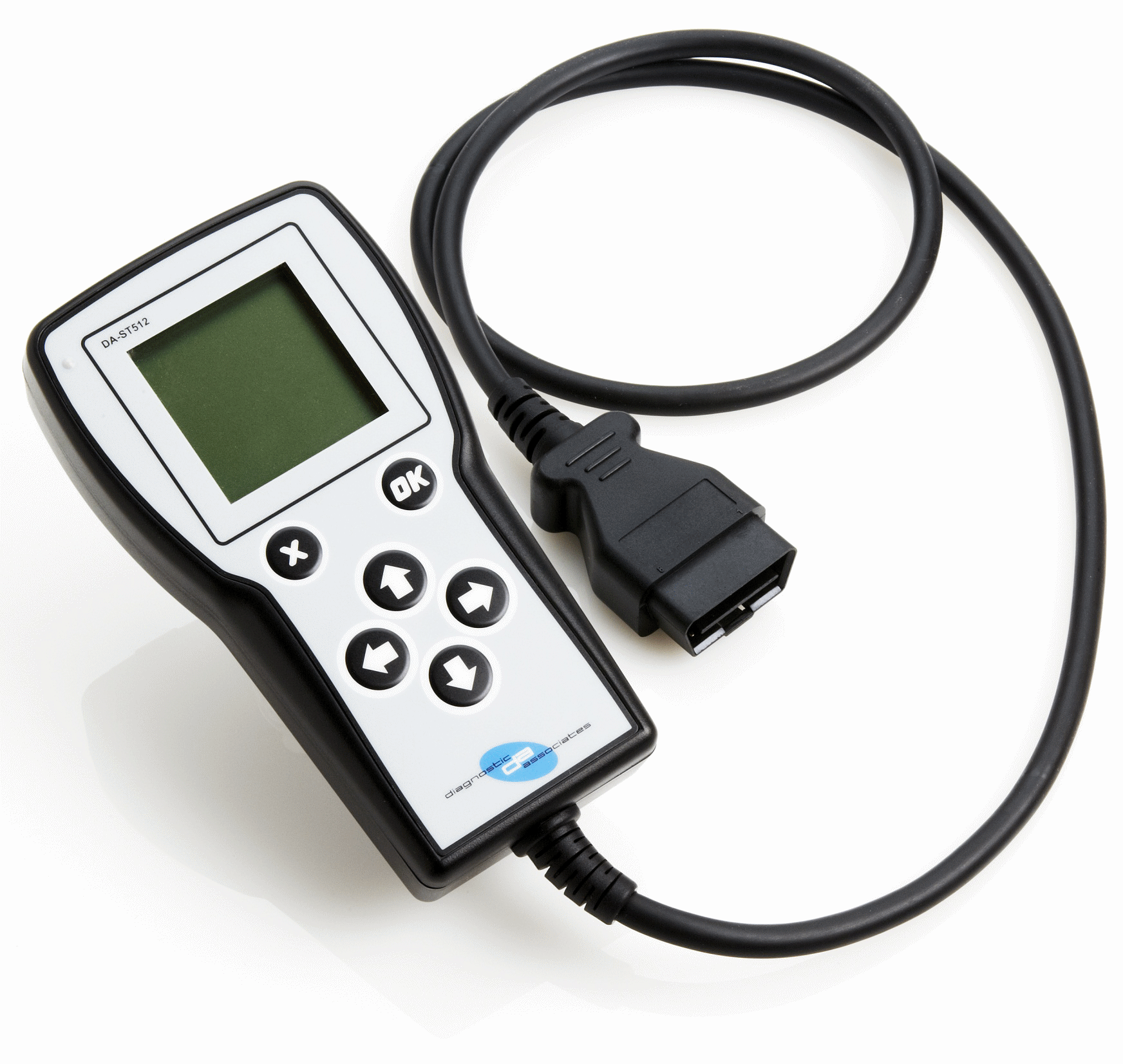

| • DA-ST512 Service Hand Held Device (Jaguar Land Rover Approved) |
|
|
The DA-ST512 connects directly to the vehicle OBDII diagnostic connector, powers from the vehicle and is then ready to use. The DA-ST512 can perform a vast number of applications using a simple menu structure. Example applications include, SIR, EPBR, TM toggle, PDI, DTC Read & Clear, TTM Toggle, DPFAR and DPFDR. The DA-ST512 can also be used as a high-performance pass-thru (SAE J2534) vehicle interface with the same specification as our DAVINA product. Many other applications are available see below for the full application and price list.
Download Product Specification for further details
Download DA-ST512 Service Hand Held Application Price List
|  |
|
| • DA-Dongle J2534 (Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface) |
|
|
The DA-Dongle J2534 is a low cost high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; it then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, and ISO protocols
Download Product Specification for further details
|  |
|

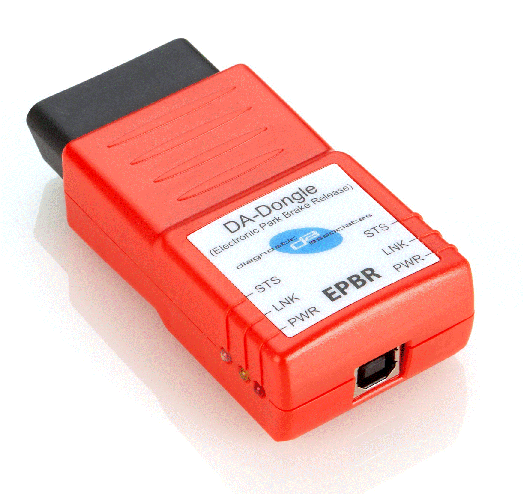

| • DA-Dongle EPBR (Jaguar Land Rover Electronic Park Brake Release) |
|
|
The DA-Dongle EPBR connects directly to the vehicle OBDII (Diagnostic) connector, it does not need to be used with SDD/IDS, and it is a stand-alone product. Once connected to the vehicle it will perform the Jaguar Land Rover Electronic Park Brake Release via diagnostic communication to the EPBR module. This will force the brake to move to mount mode and effectively release the pads from the disc.
Download Product Specification for further details
|  |
|
| • DA-Dongle SIR (Jaguar Land Rover Service Interval Reset) |
|
|
The DA-Dongle SIR connects directly to the vehicle OBDII (Diagnostic) connector, it does not need to be used with SDD/IDS and is a stand-alone product. Once connected to the vehicle it will perform the Jaguar Land Rover Service Interval Reset via diagnostic communication to the Instrument Cluster module. This will remove the service warning from the Instrument Cluster and reset the counter in preparation for the next service interval.
Download Product Specification for further details
|  |
|

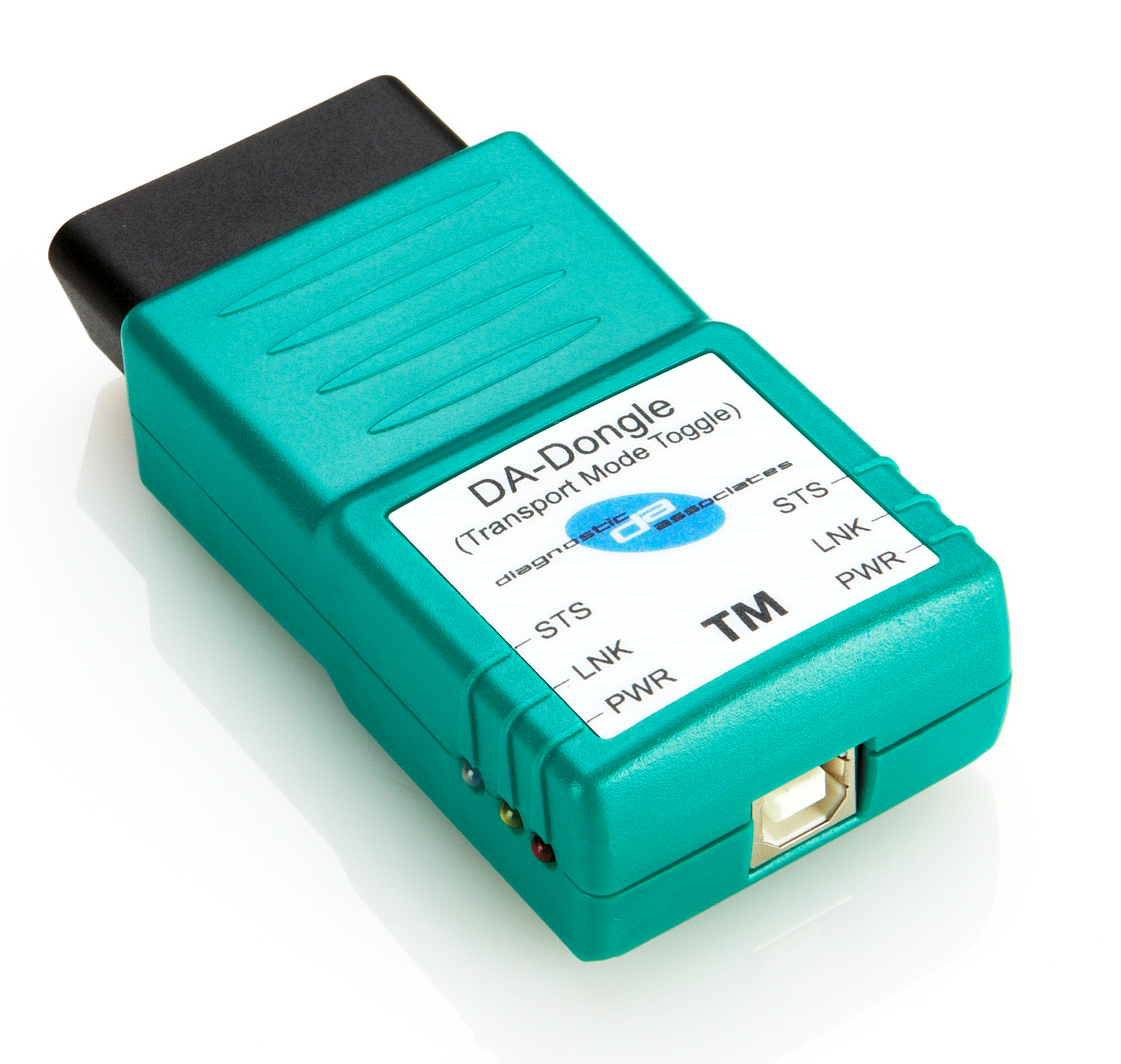

| • DA-Dongle TM (Jaguar Land Rover Transport Mode) |
|
|
The DA-Dongle TM connects directly to the vehicle OBDII (Diagnostic) connector, it does not need to be used with SDD/IDS, and it is a stand-alone product. Once connected to the vehicle it will perform the Jaguar Land Rover Transport Mode toggle via diagnostic communication. This will disable the speed limit and disable the air suspension on applicable vehicles within the Jaguar Land Rover range.
Download Product Specification for further details
|  |
|

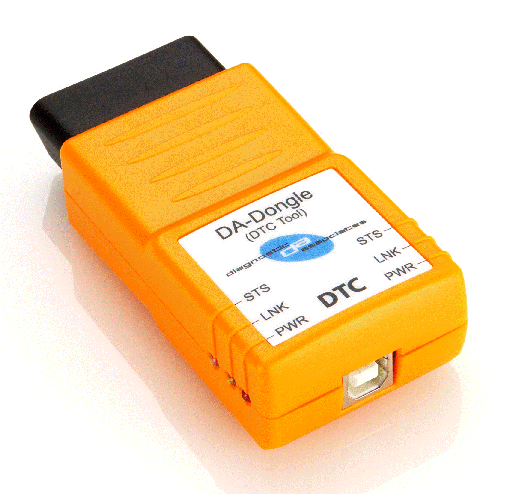

| • DA-Dongle DTC (Jaguar Land Rover Diagnostic Trouble Code Clear) |
|
|
The DA-Dongle DTC Clear connects directly to the vehicle OBDII (Diagnostic) connector, it does not need to be used with SDD/IDS, and it is a stand-alone product. Once connected to the vehicle it will perform the DTC clear of all fault codes on the vehicle excluding hard faults.
Download Product Specification for further details
|  |
|

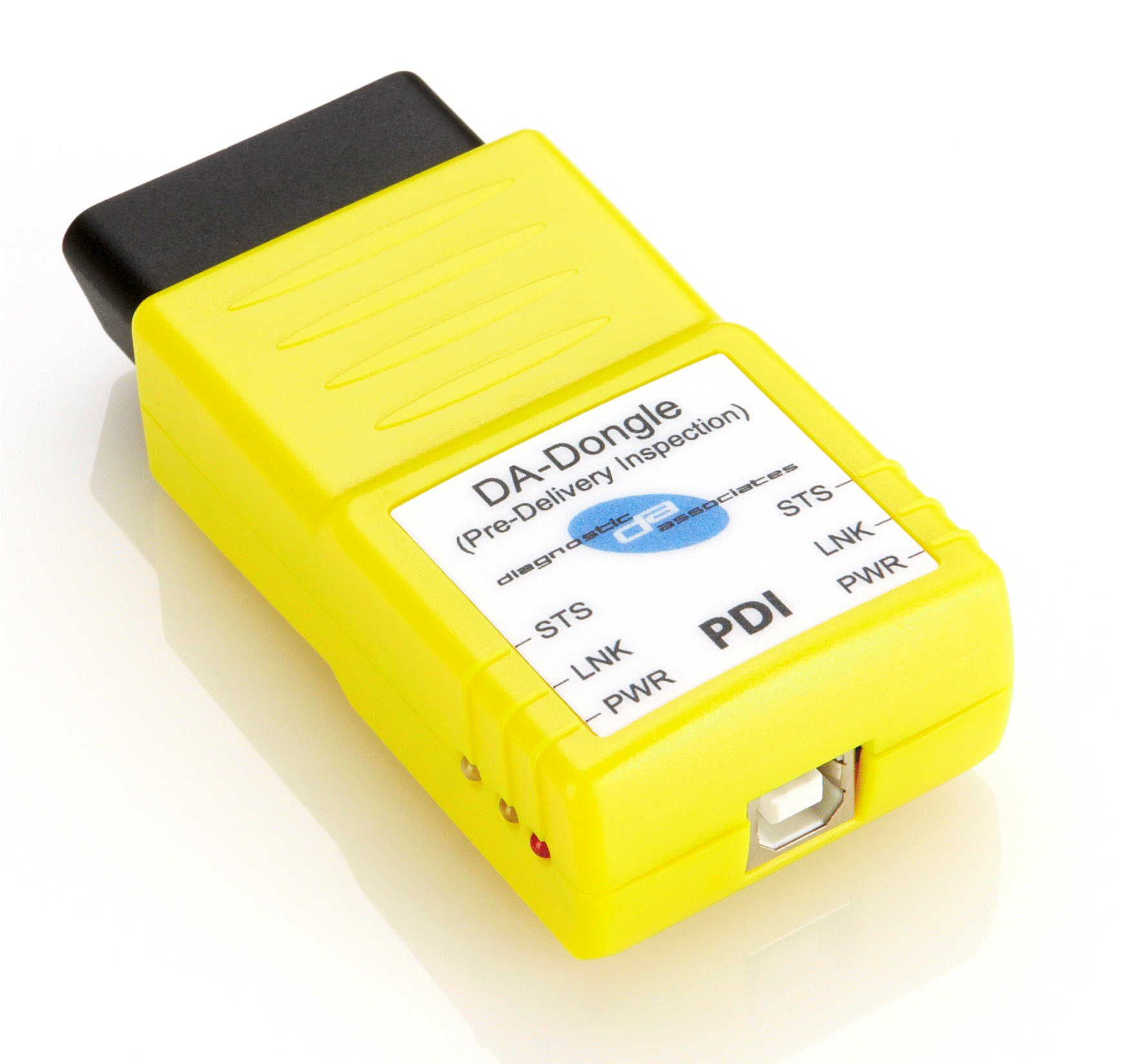

| • DA-Dongle PDI (Jaguar Land Rover Pre-Delivery Inspection) |
|
|
The DA-Dongle PDI connects directly to the vehicle OBDII (Diagnostic) connector, it does not need to be used with SDD/IDS, and is a stand-alone product. Once connected to the J1962 connector it will perform the diagnostic Jaguar Land Rover PDI operations.
Download Product Specification for further details
|  |
|

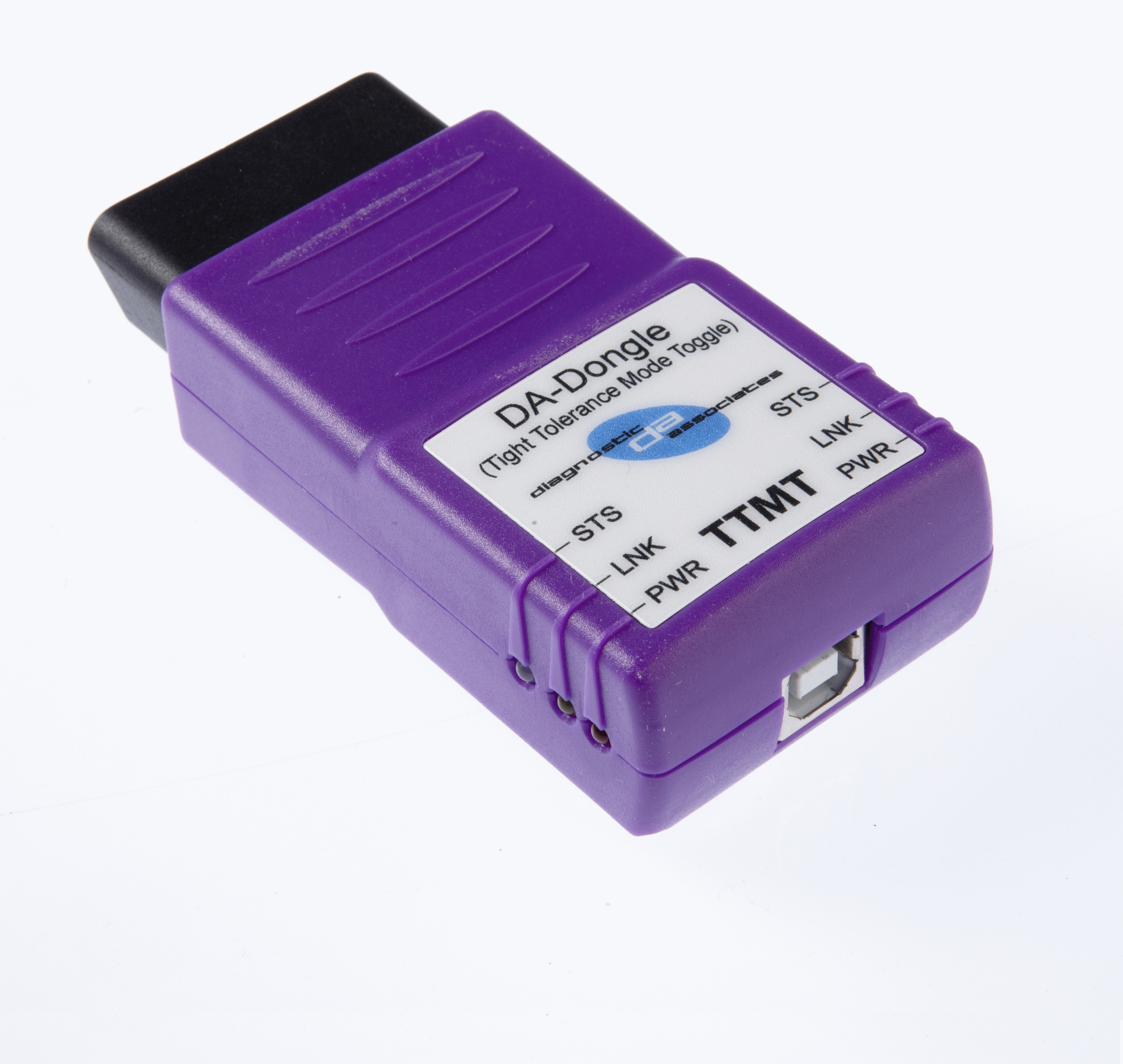

| • DA-Dongle TTMT (Jaguar Land Rover Tight Tolerance Mode Toggle) |
|
|
The DA-Dongle TTMT connects directly to the vehicle OBDII (Diagnostic) connector, and it is a stand-alone product. Once connected to the vehicle it will toggle between Tight Tolerance Mode and Customer Mode on the vehicle via diagnostic communication. This will then allow wheel alignment etc. to be performed on the Jaguar Land Rover range.
Download Product Specification for further details
|  |
|

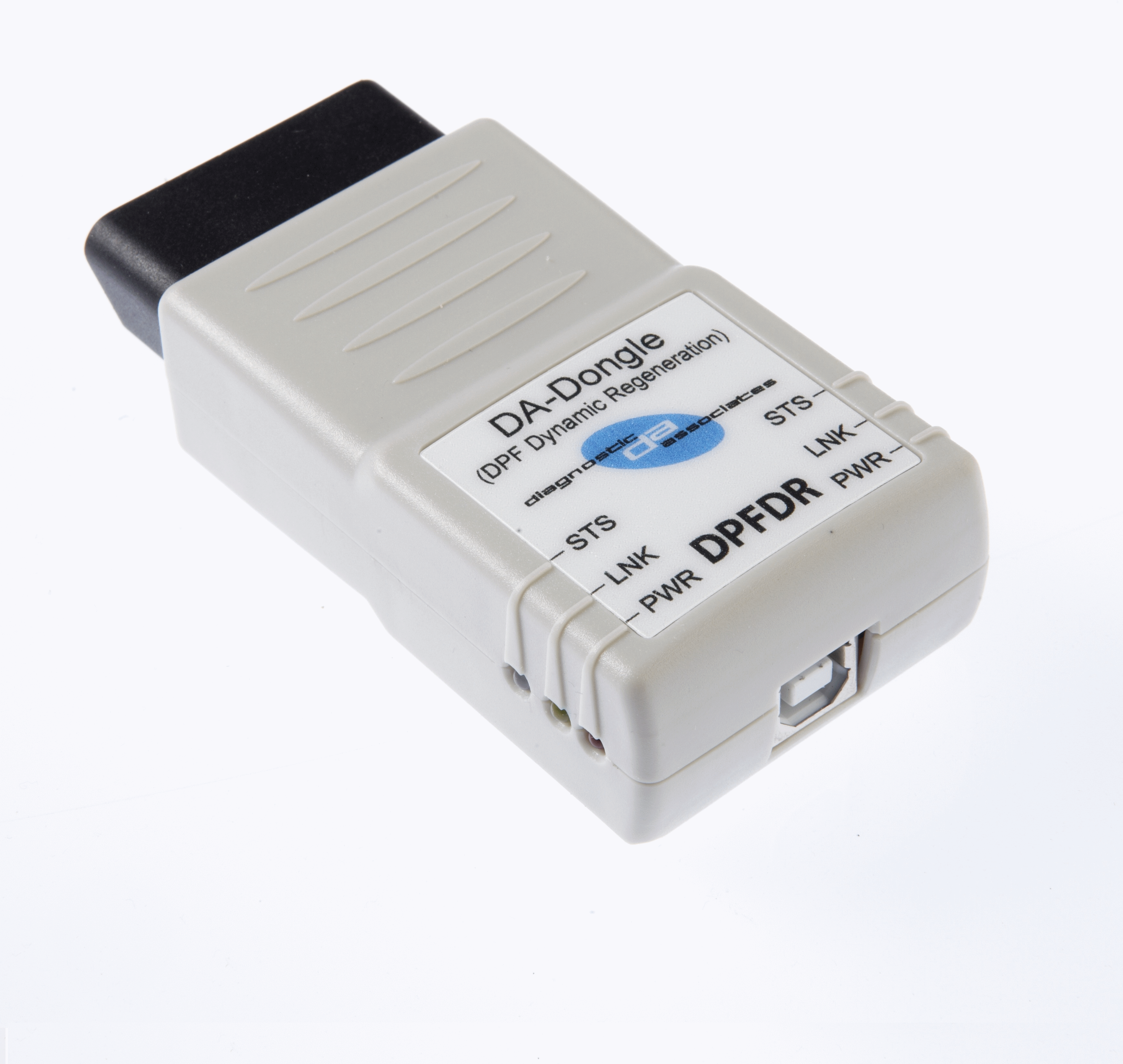

| • DA-Dongle DPFR (Jaguar Land Rover DPF Dynamic Regeneration) |
|
|
The DA-Dongle DPFDR connects directly to the vehicle OBDII (Diagnostic) connector, and it is a stand-alone product. Once connected to the vehicle it will perform the Jaguar Land Rover DPF Dynamic Regeneration via diagnostic communication. This will clear DPF adaption values and then as part of a drive cycle above 40KPH allow DPF Dynamic Regeneration. Recommended to be used with the Right Angle OBDII Cable.
Download Product Specification for further details
|  |
|

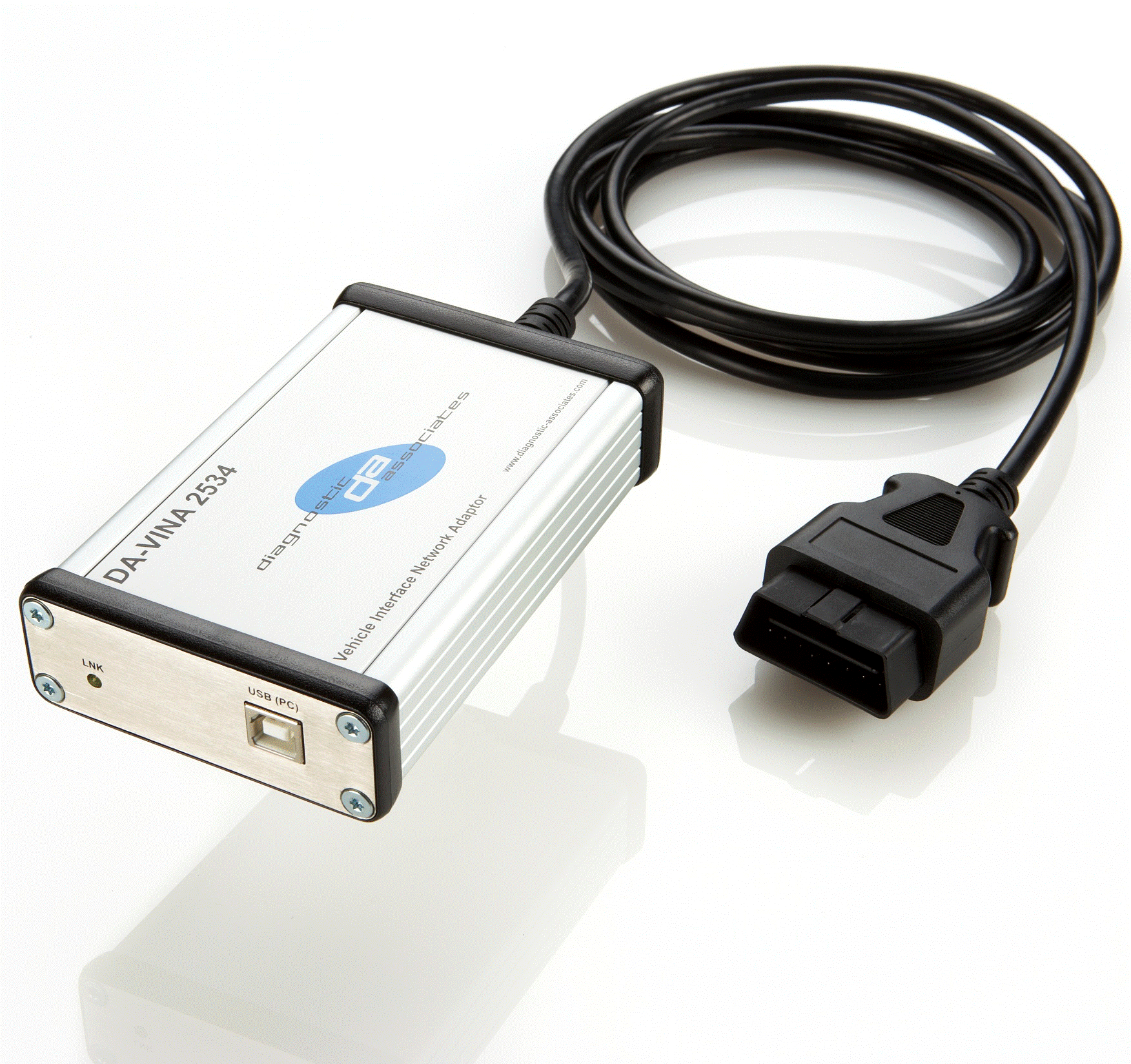

• DA-VINA 2534 (Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface)
|
|
|
The DA-VINA 2534 is a high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; it then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, ISO and SCP (J1850) protocols.
Download Product Specification for further details
|  |
|

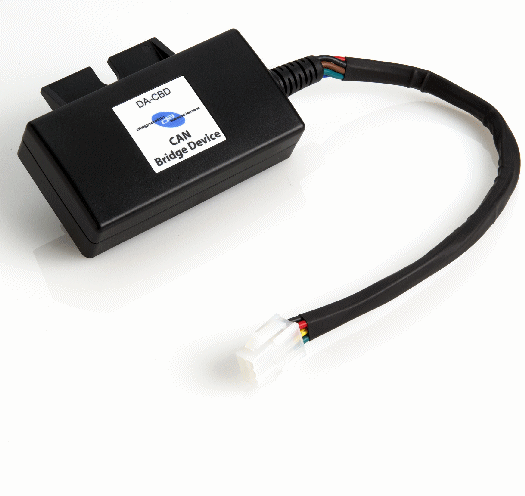

• DA-CBD - CAN Bridge Device
|
|
|
DA-CBD is based on existing DA product architecture. It can easily be fitted to a vehicle as part of the existing CAN architecture. It provides a CAN network bridge between two CAN networks running at the same or different baud rates, allowing different communication architectures to be integrated.
It is capable of:
- Modifying/generate existing or new CAN frames on either bus.
- Analogue and Digital I/O for switch detection enabling CAN signal generation/modification.
- Two channels of variable PWM (pulse width modulation) enabling signal generation to simulate various signal patterns.
- The DA-CBD is easily configured, programmed to meet the exact requirements of your custom design/application.
Also supports ISO9141, LIN communication physical layers.
Download Product Specification for further details
|  |
|

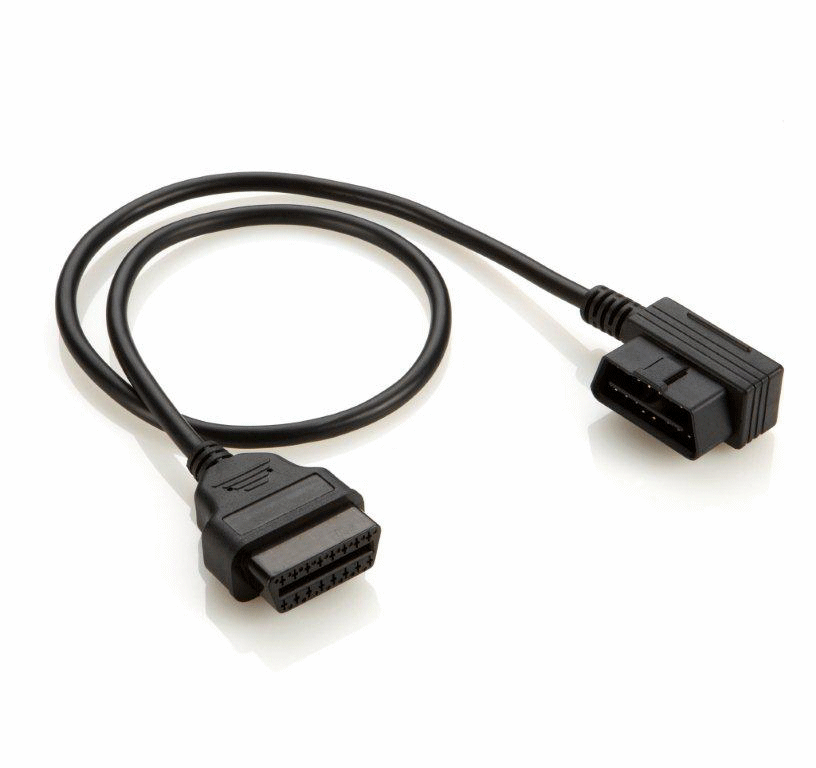

| • Right Angled Cable - OBDII |
|
|
We supply the industry standard OBDII right-angled cable which allows right-angled connection to the vehicle OBDII (diagnostic) connector. This is a Jaguar Land Rover approved OBDII cable which is ideally suited for use with IDS/SDD for drive cycle testing but can be used with any OBDII device/cables. The cable has a 0.5m length and is fully populated.
Download Product Specification for further details
|  |
|

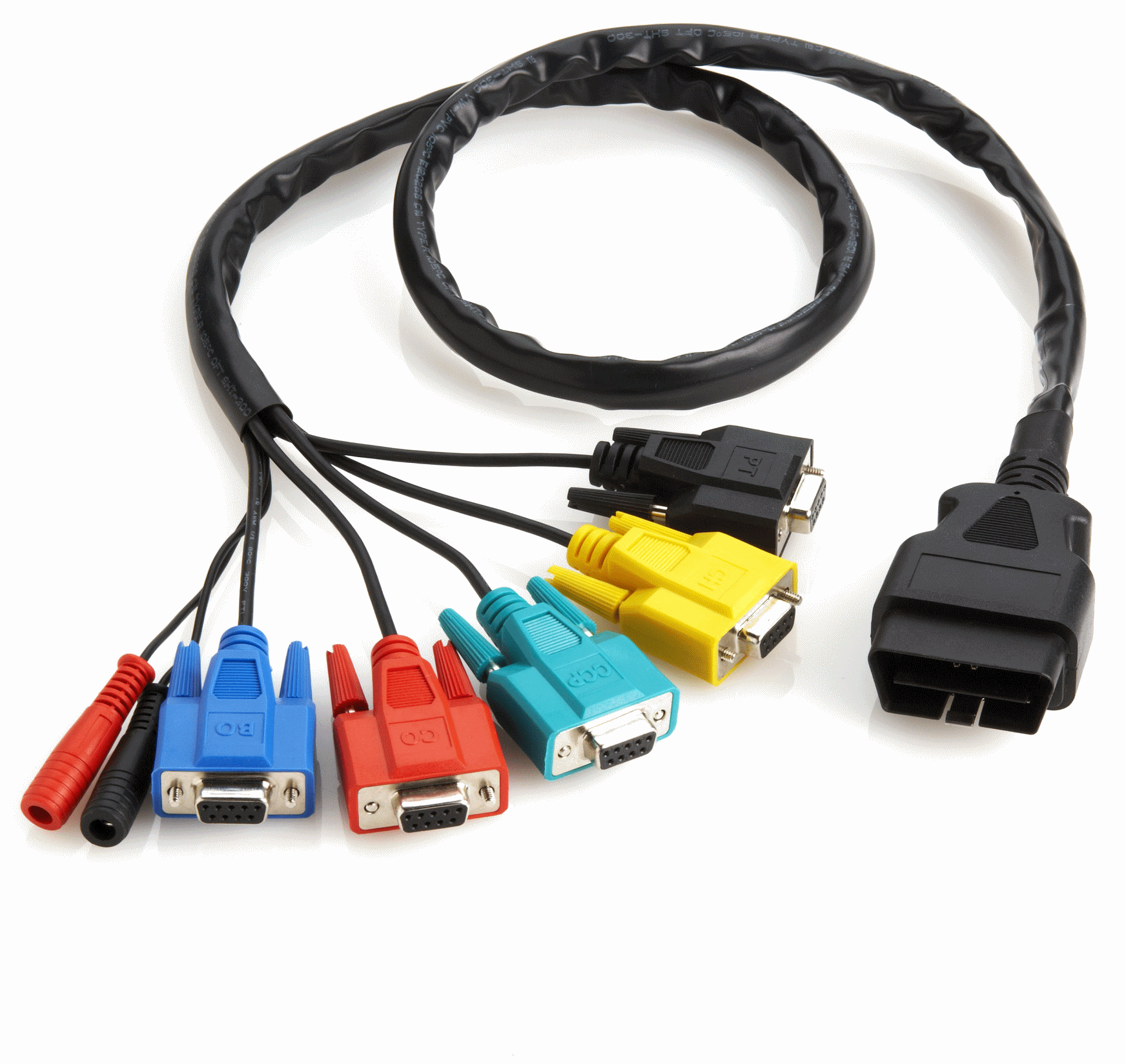

• Multi-CAN OBDII to D-Type Cable
|
|
|
Jaguar Land Rover Manufacturing & Engineering Cable
Overview:
- JLR OBDII approved cable
- Allows Multi-CAN connection to the vehicle OBDII (diagnostic) connector and is ideally suited for use with lab cars, desk top rigs and Multi-CAN vehicles
- 1.0m & 3.5m cable options are available
- Colour coded embossed D-Type CAN connection cables
- Includes power & ground connections
Download Product Specification for further details
|  |
|

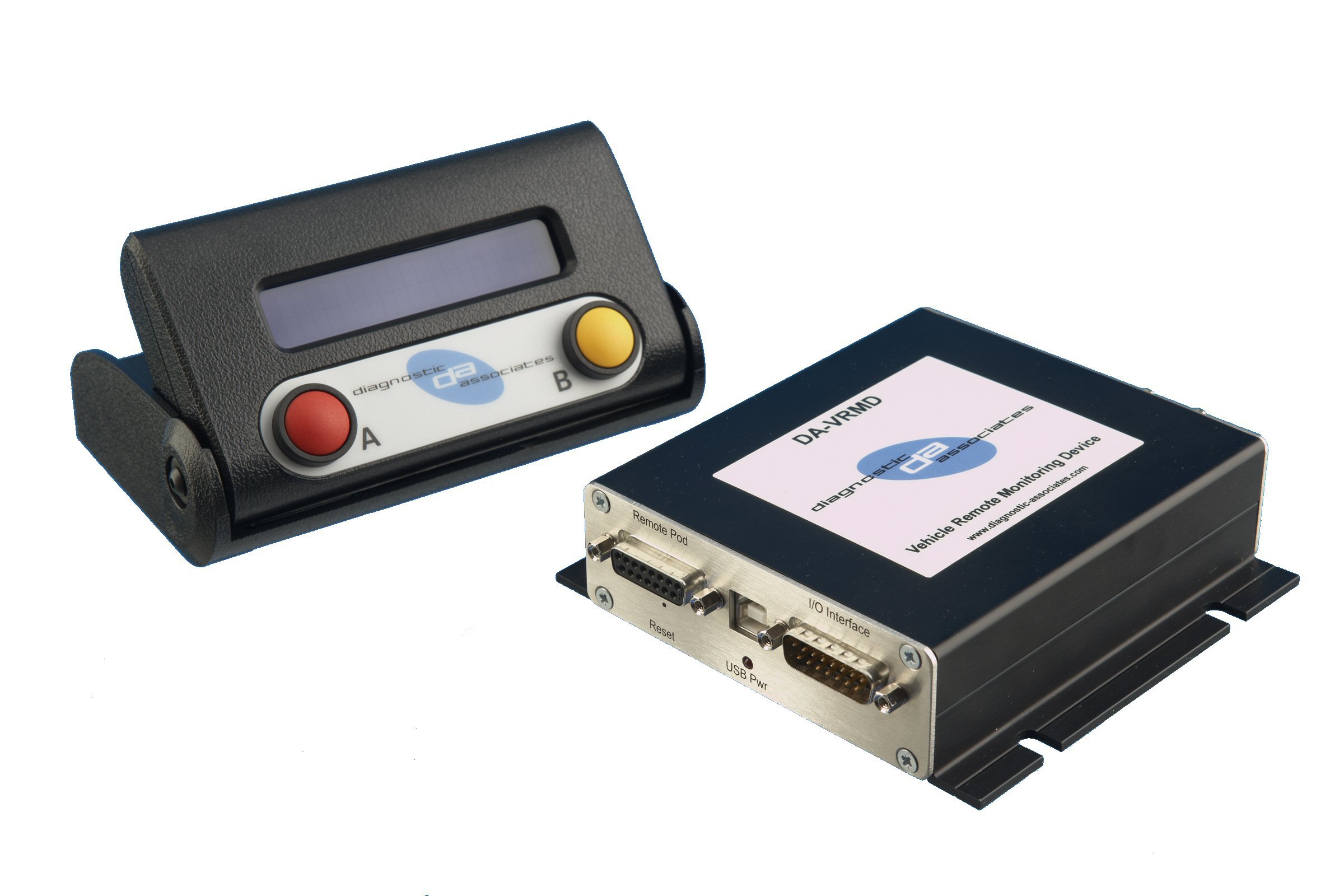

| • DA-VRMD - Vehicle Remote Monitoring Device |
|
|
The DA-VRMD provides remote monitoring of vehicle GPS location, CAN/ISO9141 network data (e.g. fault codes, live data etc.), along with analogue and digital I/O such as battery voltage measurement and relay control.
It can optionally be used with a 2 line LCD display to provide vehicle data feedback and manual control of functions via two configurable buttons. There is a standard SD-card slot for storage and USB communication capability if required.
The device is connected to the vehicle diagnostic port and sends data back via GPRS to a central server, the information is then presented to the user via a custom web site which they can use to monitor the remote vehicle and control VRMD functions. The web site can be customised to display data in many formats and allows reports to be created for offline use.
Current users include Jaguar Land Rover Pre-production test vehicles, SAIC Motor Pre-production test vehicles, Paneltex Commercial electric vehicles, Avid Vehicles/Newcastle University Electric vehicle conversion/research and Future Transport Systems Nissan Leaf electric vehicles
Download Product Specification for further details
|  |
|
| • DA-RMD - Remote Monitoring Device |
|
|
The DA-RMD provides remote process control and data acquisition of GPS location, analogue and digital I/O (e.g. temperature, humidity, voltage, fluid level, relay inputs/outputs etc.), along with the capability to provide CAN network data communications if required.
It can optionally be used with a 4 line LCD display to provide vehicle data feedback and manual control of functions via two configurable buttons. There is a standard SD-card slot for storage and USB communication capability if required.
The device is connected to the external I/O using a standard edge connector and sends data back via GPRS to a central server, the information is then presented to the user via a custom web site which they can use to monitor the remote process and control RMD functions. The web site can be customised to display data in many formats and allows reports to be created for offline use.
Current users include Paneltex for NHS Mobile Mammography Trailers
Download Product Specification for further details
|  |
|
